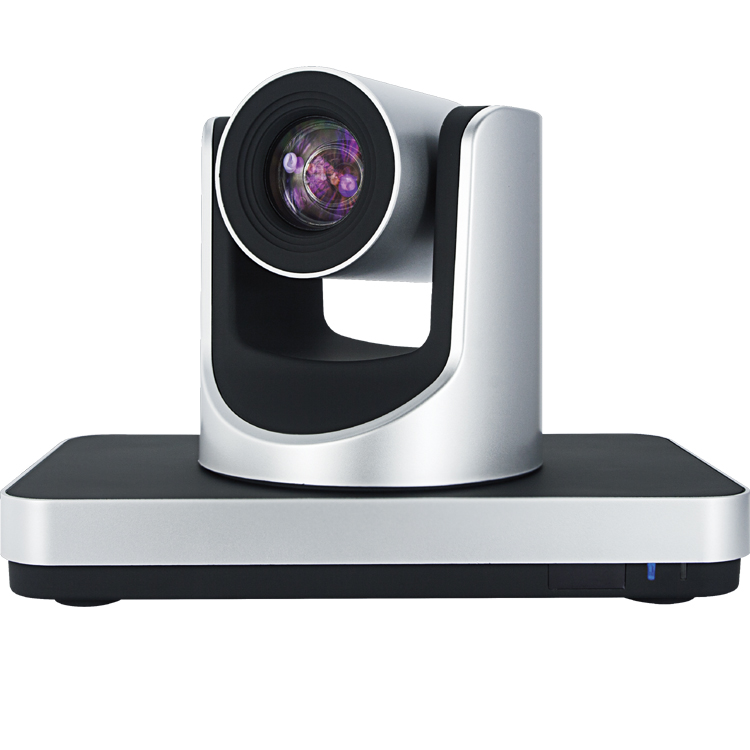

EP500 - Video Conferencing Enpoint

EP500 Video conferencing endpoints are the hardware that sends and receives the video and audio required to deliver a face-to-face video meeting. Endpoints are available from all the leading manufacturers and include options for meeting room, boardroom, and individual workspace environments. Boardroom and Meeting Room EndpointsEndpoints for boardroom and meeting room environments include a codec and microphone.

Download data Download catalogs

Key Features

• All-in-one Design

All-in-one design, Camera + Video Conferencing System buit-in-one device, simple to use. Support external microphone, small size, easy to install.

• 20x optical zoom

Using high quality lens, support 20x optical zoom.

• Standard protocols, fusion

Support the standard SIP, H.323 protocol, compatible with the industry mainstream standard terminal and the network side device.

• Low bandwidth, high-definition

Support for the latest HP coding standard H.264, about 50% less bandwidth requirements compare with prervious encode standard.

• Multiple type of microphone support

Support USB microphone, general microphone

• High network adaptability and security

Support H.460 through firewall technology, solution and solve the safety of the public and private
network connection. Support multiple encryption protocol, such as H.235, SRTP and AES-128 etc. omni-directional to protect the communication security.

• HD 720P(1080P Full HD(optional))

Supports 720P HD (optional 1080P), supports 1 channel (HDMI) HD video input in addition to built-in HD camera input, and supports 2 channel (HDMI) HD video output.

• Base on embedded DSP solution

Base on embedded DSP hardware solutions, high efficiency, low latency.

• Full open API

Fully open API can provide a powerful media processing engine.

• Remote, local recorded broadcast

Support remote recording with one PC only, USB flash disk recording, PnP (Plus and Play), protecting
