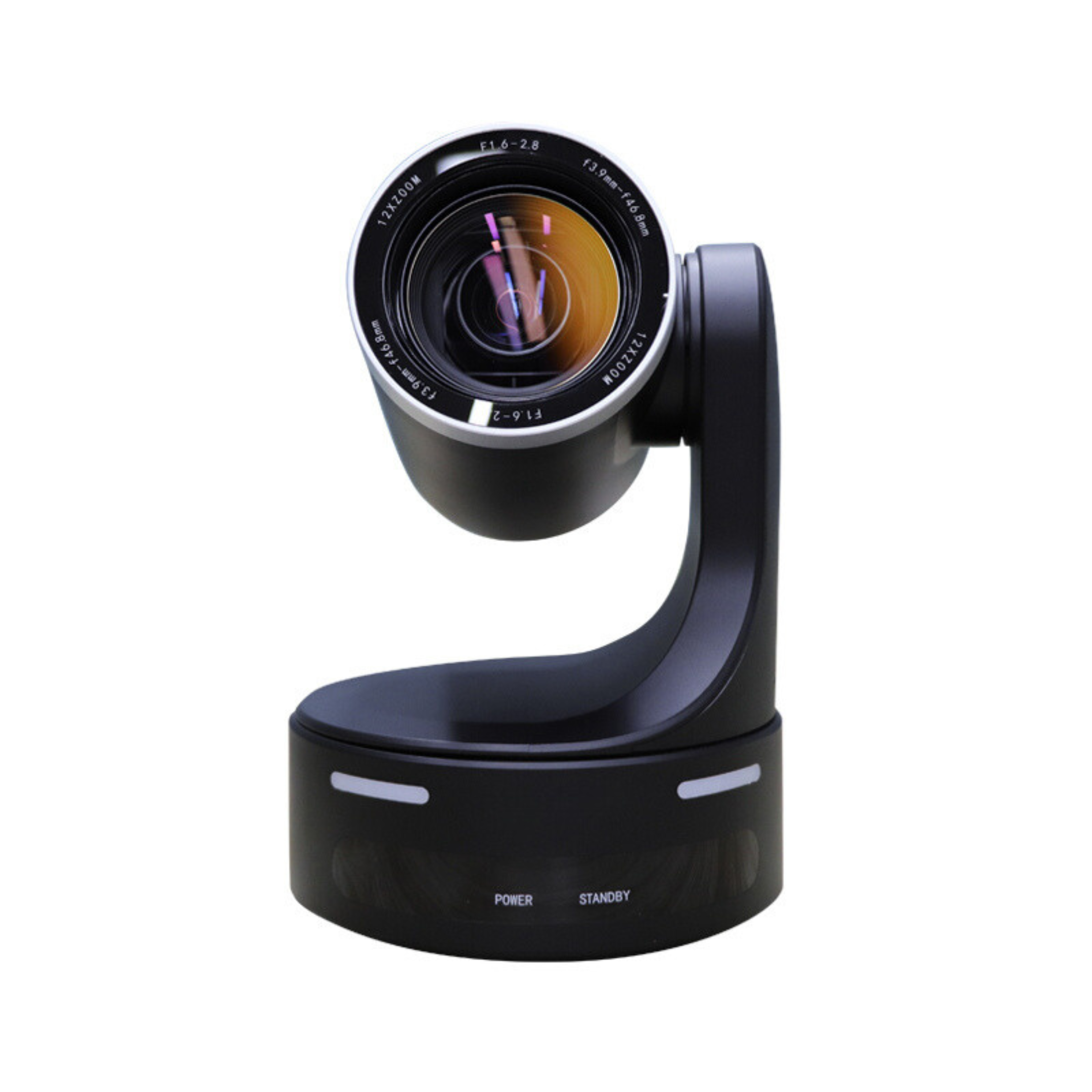

New Live Streaming PTZ Camera - Tezag TZ712AI

Tezag New single arm design USB3.0 Full HD SDI Live Streaming Ptz Camera Tezag TZ712AI. This broadcast PTZ Camera build with HDMI, SDI, IP, USB3.0 interface, it is 1080P60fps HD resolution, 12X optical zoom support close-up snapshots at a long distance meet the demand in middle and large size room. The HDMI mainstream interface, can support the docking and matching of mainstream devices, SDI is good for live broadcast, ip streaming and control, this usb3.0 camera is widely used in Live streaming, Video Conferencing, remote learning, Telemedicine, Church, Scene, the incident, courts, media centers, chain stores,and so on.

Download data Download catalogs

Key Features

High Resolution and Sensor, High-quality Lens: Suitable for middle or large size room

Live Streaming Camera with Tally Light: Green when it working fine, Easy operation

Live Streaming Camera with SDI/HDMI/IP/USB3.0 Output: 3G-SDI, HDMI,USB3.0 and IP Port, adapt to various applications such as Video conferencing and live broadcast

Compatible with Most Software: Compatiable with Zoom, polycom, Microsoft Lync, CISCO WebEx and skype for business,..

Multi-Application: Widely use in live broadcast, video conferencing, tele-medicine,tele-training, tele-education,church,goverment and so on

Detail Information

Lens	12X optical zoom f=3.9mm(w)~46.8 mm(f) F1.8~F2.8
Horizontal View Angle	72.5°(W)~7.4°(T)
Pan	355°(max. speed:80°/s)
Tilt	-30° to +90° (max. speed: 60°/s)
Focus System	Auto/Manual
S/N Ratio	≥50db
Preset Position	9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC
Minimum Illumination	0.1Lux
Exposure Control	Auto/Manual/Priority AE/Exposure Compensation/Bright
Shutter Speed	1/1～1/10,000s
Gain	Auto/Manual
White Balance	Auto/Manual/ATW/One-click/Indoor/Outdoor
Image Effect	Full color/black and white/Electronic flip
Video Output HD	HDMI,SDI,USB3.0,LAN
Control Protocol	SONY VISCA, PELCO P/D
Control Mode	RS-232, RS-422/485
Power	12V DC(10.8～13.0V DC)
Power Consumption	Max. 30W(DC 12V)
Operating Temperature	0~40℃
Storage Temperature	-20-60℃
Camera Dimensions	(L)161 ×(W)133 ×(H)181mm
Weight	1200g
Color	Black
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS232 cable, HDMI cable, USB Cable, Ceiling bracket
