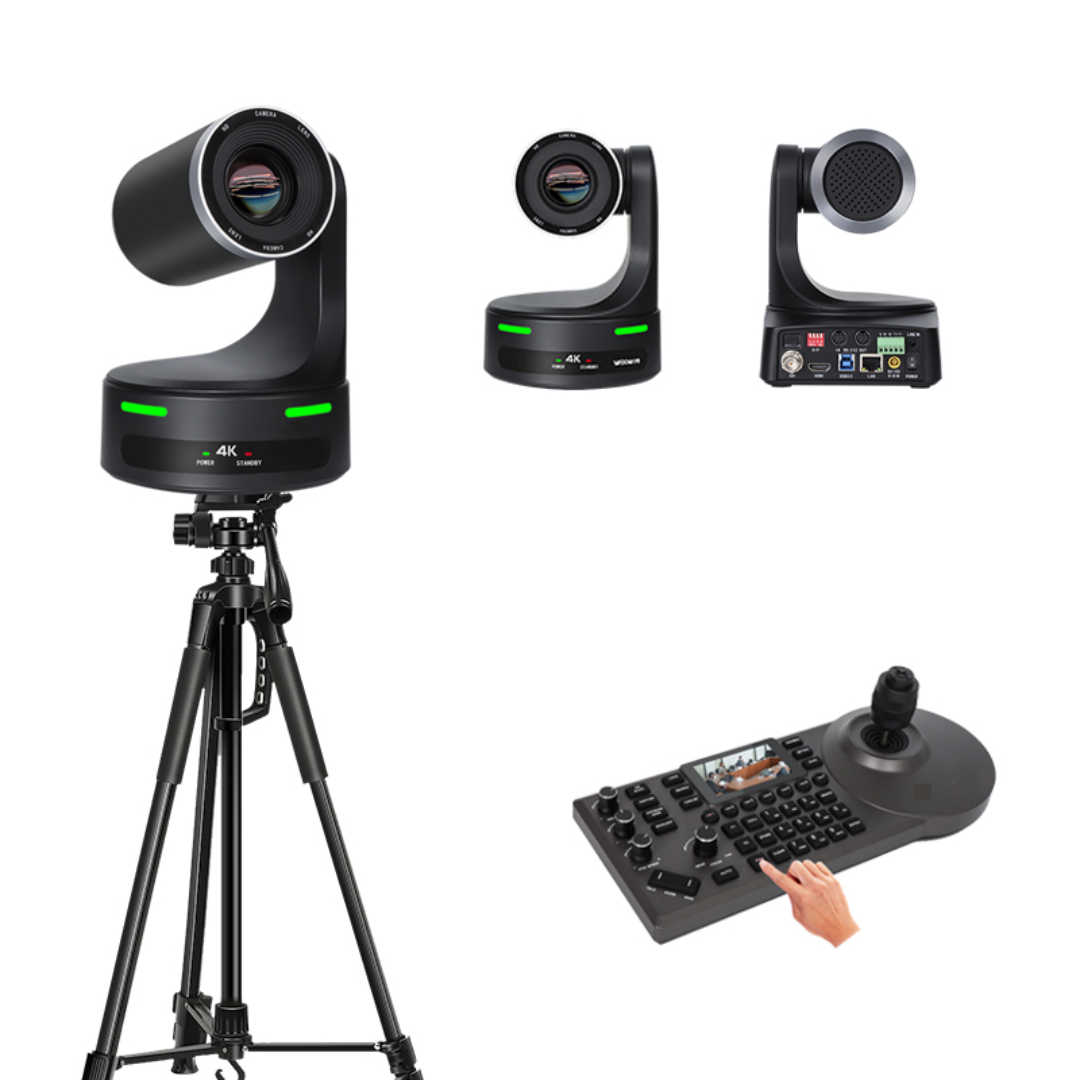

4K UHD PTZ CAMERA 12X/20X Zoom TEZAG TZ812/TZ820

4K UHD PTZ CAMERA 12X/20X Zoom TEZAG TZ812/TZ820 is high quality 4K Camera with SONY 1/2.8” Progressive CMOS sensor, the megapixel is 8.5.The resolution is up to 4K30FPS and compatible with 1080P. This 4K Camera’s interface is SDI, HDMI, LAN, USB3.0. It has 12X and 20X optical zoom for chioce. They are good for middle and large size conference meeting rooms.The 4K ptz camera WIN-J86AKN is support YUY2, H265, MJPG, H264 multiple video compression formats. 4K NDI PTZ Camera is widely used in Live streaming and broadcasting for Church, Concerts, TV studio, Events, Sports, Court, Classroom, Tele-medicine, Video Conferencing etc.

Download data Download catalogs

Key Features

8.5 Megapixels,4k/30fps,SONY CMOS Sensor,
POE, Power on ethernet supported,
NDI|HX 2 version, new NDI low latency
H.264, H.265，RTSP, RTMP, ONVIF.

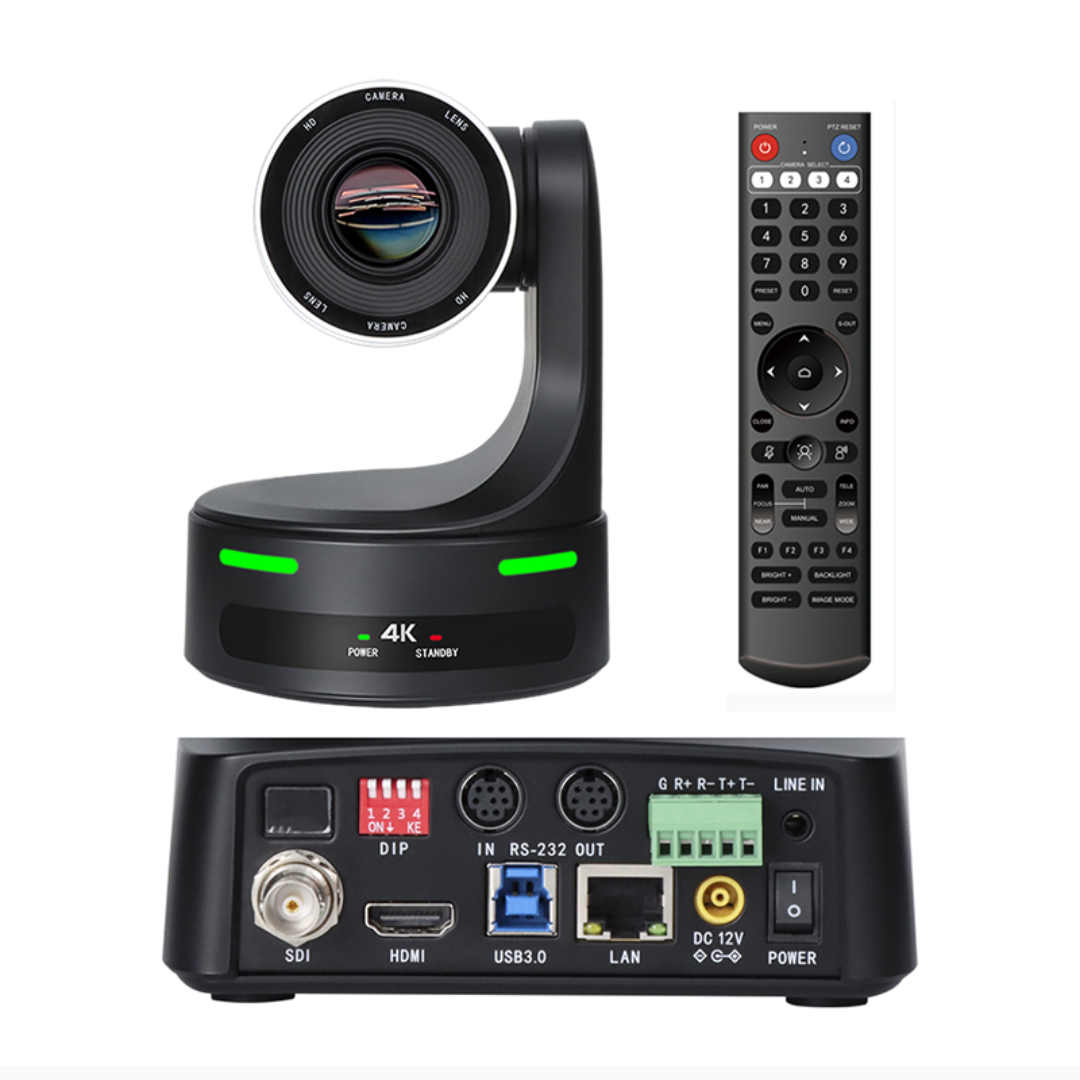

HDMI, USB3.0, IP Port(POE optional), A-IN, RS232,RS422,
10 preset position by IR remote controller,255 via Joystick controller,
Pan:355° degree,Tilt:120° degree.
20X optical zoom, We have 12X zoom for Option

TZ812: Apply high quality 8.50 megapixels 4K ultra wide-angle lens, 12x optical zoom, support 16x digital zoom.
TZ820: Apply high quality 8.50 megapixels 4K ultra wide-angle lens, 20x optical zoom, support 16x digital zoom.
This 4K UHD PTZ Camera is with Pan Tilt Zoom.
The Pan is 355°Degree, While Tilt is 120° Degree, it is large enough for track the participates.
4K NDI Camera is multiple Compatiable with Zoom, polycom, Microsoft Lync, CISCO WebEx and skype for business as the conferencing software.As well as the live streaming and recording software such as Vmix,Obs…

Support VISCA, PELCO P/D protocol, VISCA IP, support automatic identification protocol,Supports ONVIF, SRT, RTSP, RTMP and NDI|HX2 protocols.
4K Ultra HD PTZ Camera Tezag TZ812/TZ820 can set many presets.

Via the remote control, it can set 10 presets, while use PTZ Camera joystick controller via IP can set over 255pcs presets position.

Detail Information

Lens	TZ812:12X optical zoom, f=3.9mm(w)~46.8mm(f) TZ820:20X optical zoom, f=5.2mm(w)~104mm(f)
Image Sensor	SONY Progressive 4K CMOS
Effective Pixels	8.50 Megapixels
Digital Zoom	16X digital zoom
Scan Mode	Line by line
Horizontal View Angle	TZ812: 72.5°(W)～6.5°(T) TZ820: 58.7°(W)～3.2°(T)
Iris	F1.6～F2.8
Minimum Illumination	0.5 Lux @ (F1.8, AGC ON)
Shutter Speed	1/25s~1/10000s
Focus System	Auto/Manual
S/N Ratio	≥55dB
Exposure	Auto, Manual, Iris Priority, Shutter Priority
White Balance	Auto, Indoor, Outdoor
Backlight Compensation	Support
Digital Noise Reduction	2D&3D Digital noise reduction
Wide Dynamic Range	Support
Special Effect	Normal, black and white
Image Freeze	Support
Mirror	Support
Electronic Flip	Support
Automatic Upright/Flip Recognition	Support
Audio and video interface
Digital Output	HDMI1.4 HDMI color mode: RGB, YCbCr422, YCbCr444 Video Resolution: 38402160p30/25, 19201080p60/59.94/50/30/29.97/25, 1280720p60/50 3G-SDI: 19201080 p60/59.94/50/30/29.97/25, i60/50/59.94 1280*720 p60/50
LAN	Supports Multiple Code Streams; Encoding Format: H.264, H.265, MJPEG Profile: Main, High, Baseline(H.264) Streaming Protocol: RTMP, RTSP, ONVIF, SRT, NDI\|HX2 Main Code Stream Resolution:1080 p30/25/20/15/10 Auxiliary Code Stream Resolution:480, 360, 288, 240, 144（p30/25/20/15/10） MJPEG Resolution:1080, 720
USB	Protocol: UVC1.1, UAC1.0 Operating System: Window7 and above, MacOS10.10 and above, Ubuntu16.04 and above or systems compatible with V4L2-driven UVC Video Coding Format: YUY2, MJPEG MJPEG: 320×180, 320×240, 352288, 480272, 640×480, 720×576, 800×600, 1280×720, 1920×1080, 2560×1440, 3840×2160 YUY2: 320×180, 320×240, 352288, 480272, 640×480, 720×576, 800×600, 1280×720, 1920×1080 UVC Video Frame Rate: Max.60 UAC Audio Coding Format: PCM
Audio In	Unbalanced analog input (Line In) 3.5mm Sampling rate: 44.1K, 48K Encoding format: AAC
Pan/Tilt
Pan Range	355°(max.speed:80°/s)
Tilt Range	-30°~+90°
Pan Speed	0.1°/S~90°/S
Tilt Speed	0.1°/S~90°/S
Pan Positioning Accuracy	0.1°±10%
Tilt Positioning Accuracy	0.1°±10%
Preset Speed	7 Levels
Preset Position Numbers	255
Control
Control Mode	IP, RS-232（RJ45）, RS-422/485 In（RJ45）, IR Remote, 2.4G Wireless(Optional)
Network Control Protocol	ONVIF, VISCA Over IP, NDI\|HX2
Serial Control Protocol	VISCA, Pelco D, Pelco P
Power Supply
Input Voltage	DC 12V IEC60130-10（JEITA Standard RC-5320A）TYPE4
Input Current	Max.1.0A
POE	802.3af(Optional)
Power Consumption	Max.12W
Others
Tally	Support serial port VISCA protocol trigger and NDI protocol connection trigger
Operational Environment	Indoor
Operational Temperature	-10-40℃
Storage Temperature	-20-60℃
Camera Dimensions	(L)161×(W)133.6×(H)181mm
Color	Black
Weight	1200g
Accessories	DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable, HDMI Cable, USB Cable, Ceiling bracket (Wall bracket optional)
