4K60P / NDI®|HX2 / 20x Optical zoom / AI Tracking
Using 1/1.8-inches high-quality UHD CMOS sensor with a maximum of 8.42 million pixels can realize 4K (3840x2160)ultra-high-resolution high-quality images. And downward compatible with 1080p, 720p and other resolutions.
It adopts 4K ultra long focal lens with high quality and 8 million ultra-high resolution, 20x optical zoom, and the maximum field angle is 60° .
Built-in self-developed electro mechanical PTZ, the horizontal rotation range can reach ±162.5 ° , the rotation speed range is 1.8 ° ~ 80 ° /s; the vertical rotation range can reach -30°~90°, and the rotation speed range is 1.5°~49° /s.
Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI or 3G-SDI, USB, LAN can output three HD digital signals at the same time.
Built-in dual microphones use the beamforming algorithm to accurately pick up the sound. The unique noise suppression algorithm makes the speaker's voice clearer and more realistic, and the pickup distance is up to 6 meters.
With HDMI2.0 and 3G-SDI interface, it can directly output uncompressed digital video.
The application of 3D noise reduction algorithm greatly reduces image noise. Even under the condition of ultra-low illumination, it still keeps the picture clean and clear, and the SNR of image is as high as 55dB.
Support variety of control methods, you can use RS232,RS485, network and USB to control the camera.
With the help of the AI computing power of the chip, the camera is equipped with advanced AI algorithms to realize monocular humanoid tracking, which can realize automatic tracking of scenes such as education, conferences and live broadcasts.
The built-in intelligent AI algorithm uses dual microphones to accurately locate the sound source. The camera can automatically find and track the speaker. When different speakers speak, the camera can switch among different speakers.
NDI®|HX2 has the characteristics of low latency and plug and playand easy to be implemented and deployed. It has good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode.
The optional USB3.0 interface can transmit uncompressed original video images and is backward compatible with USB2.0.
It supports automatic image flipping function, which is convenient for installation and use.
Remark:
Model |
VX752A |
Name |
4K60P Professional PTZ Camera Tezag |
Camera |
|
Video Resolution |
HDMI:4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50; 3G-SDI:1080p/60, 1080p/59.94, 1080p/50, 1080p/30,1080p/29.97; 1080p/25, 1080i/60, 1080i/59.94fps; 1080i/50, 720p/60, 720p/50 |
Sensor |
1/1.8 inches, CMOS, Effective Pixels: 8.42 Megapixels |
Scanning Mode |
Progressive |
Lens |
20x, f = 6.25mm ~ 125mm, F1.58 ~ F3.95 |
Digital Zoom |
16x |
Minimum Illumination |
0.5Lux @ (F1.8, AGC ON) |
Shutter Speed |
1/30s ~ 1/10000s |
White Balance |
Auto, Indoor, Outdoor, One Push, Manual, VAR |
Backlight Compensation |
Support |
Digital Noise Reduction |
3D Digital Noise Reduction |
SNR |
≥55dB |
Horizontal FOV |
60° ~ 3.5° |
Vertical FOV |
35.7° ~ 2.0°
|
Pan Angle |
±162.5°
|
Tilt Angle |
-30° ~ +90° |
Pan Speed |
1.8° ~80° /S
|
Tilt Speed |
1.5° ~49° /S
|
Image Flip |
Support |
Image Freeze |
Support |
PoE |
Support |
Preset Position |
255 |
Preset Accuracy |
0.1° |
USB Features |
|
Operating System Supported |
Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
Color System / Compression |
YUY2 / H.264 / MJPEG /H.265 |
Video Format |
YUY2 :Max.1080p/30(USB3.0) ; YUY2 :Max.1080p/5(USB2.0); H.264 : Max.2160p/30; H.265 HEVC: Max.2160p/30; MJPEG: Max.2160p/30 |
USB Audio |
Support |
USB video Communication Protocol |
UVC 1.1~1.5 |
UVC PTZ Control |
Support |
Network Features |
|
Video Compression |
H.265/H.264/MJPEG |
Video Stream |
First Stream, Second Stream |
First Stream Resolution |
3840x2160, 1920x1080, 1280x720, 1024x576 etc. |
Second Stream Resolution |
720x576, 720x480, 320x240 etc. |
Video Bit Rate |
First Stream: 32kbps~51200kbps Second Stream: 32kbps~20480kbps |
Bit Rate Control |
VBR, CBR |
Frame Rate |
50Hz:1fps~50fps, 60Hz:1fps~60fps |
Audio Compression |
AAC |
Audio Bit Rate |
96Kbps, 128Kbps |
Protocols |
NDI®|HX2, SRT, TCP/IP,HTTP,RTSP, RTMP(s),Onvif,DHCP,Multicast, etc. |

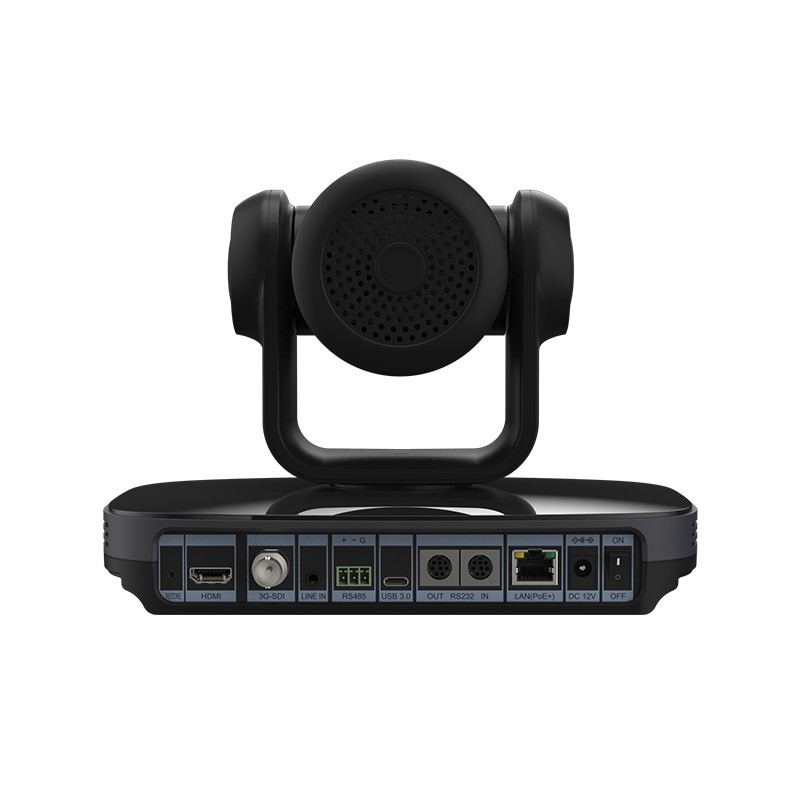

Interfaces |
|
HD Output |
1x HDMI: Version 2.0; |
1x 3G-SDI: BNC , 800mVp-p, 75Ω, as per SMPTE 424M standard |
|
Network Interface |
1x RJ45: 10M/100M/1000M adaptive Ethernet |
Audio Interface |
1x LINE IN: 3.5mm Jack |
USB Interface |
1x USB3.0, type-C (Optional upgrade to USB3.0) |
Control Interface |
1 x RS485: 3pin phoenix port, Max Distance: 1200m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 IN: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA / Pelco-D / Pelco-P; 1 x RS232 OUT: 8pin Mini DIN, Max Distance: 30m, Protocol: VISCA only
|
Power Interface |
JEITA type (DC IN 12V) |
General Specifications |
|
Input Voltage |
DC 12V / POE+(802.3af) |
Operating Temperature |
-10°C ~ 40°C |
Storage Temperature |
-40°C ~ 60°C |
Power Switch/Recovery key/IR Remote Input |
Support |
Indicator lamp |
Power State, Run State, TALLY Lamp |
Power Consumption |
18W |
Dimensions |
223 x 154.8 x 165 (mm) |
Net Weight |
About 1.8kg |
