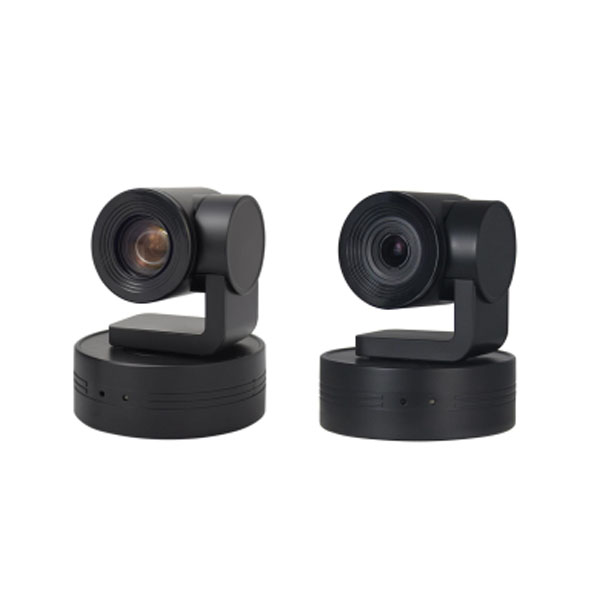

TEZ450-U2 is a perfect conference video. It applies advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. The audio adopts the international advanced newgeneration high-definition voice processing technology with clear and smooth sound quality and strong environmental adaptability. It can provide participants with smooth and natural audiovisual effects whenever and wherever, and provide a comfortable and immersive experience for teleconferencing and other applications.
● Built-in VISCA, PELCO P/D multiple control protocols
● Support USB or RS232/RS485 interface to control
● Ultra-quiet pan/tilt design, horizontal 178°, vertical -30°~ +90° rotation
● Over-New Mini compact structure, direct driven by imported high-precision stepper motor, accuracy less than 0.01°
● ONE USB Cable can transimission 【Video + Power+ Communication】
● Video output supports up to 1080P@30fps
● Various video output formats 1920*1080;1280*720;640*480;640*360; 352*288;320*240
● USB 2.0 video output, plug and play
● Support ceiling, wall mount, tripod multiple installation of methods
● Strong compatibility, support Windows, Android system, Linux, Mac, IOS
Camera Specs
1/2.8″ HD Color Sony CMOS, 2.2 MegaPixel
Frame Rate: H.264/MJPEG 1080P/30fps, YUY 720P30fps
Resolution: 1920*1080@30fps; 1280*720; 640*480; 640*360; 352*288; 320*240
Lens: 10X Optical f=5.1mm-51.0mm, F=1.8(W)-2.5(T)
Horizontal Field of View 72°(W)
Min Lux 0.2lux /0.005 lux
Shutter Speed 1 to 1/10000s
Flip & Mirror Supported
Indoor Application

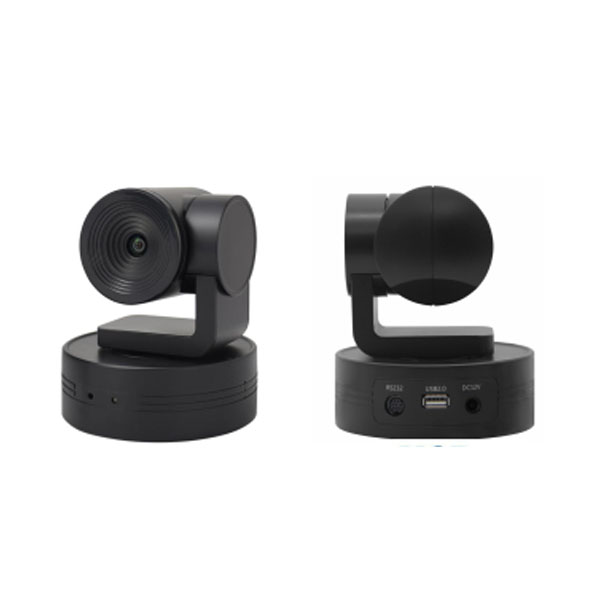

Input/Output Interface
Video Output: USB 2.0
Communication interface: RS232 / USB2.0 /RS485
Power On: USB2.0 / JEITA type (DC IN 12V)
Mechanical
Pan ±178° ; Tilt Rotation -30° ~ +90°
Pan Speed: 0.1~100°/s
Tilt Speed: 0.1~80°/s
255 Presets ( 9Presets by IR Remote )
PTZ Control Protocol : VISCA and PELCO D/P
