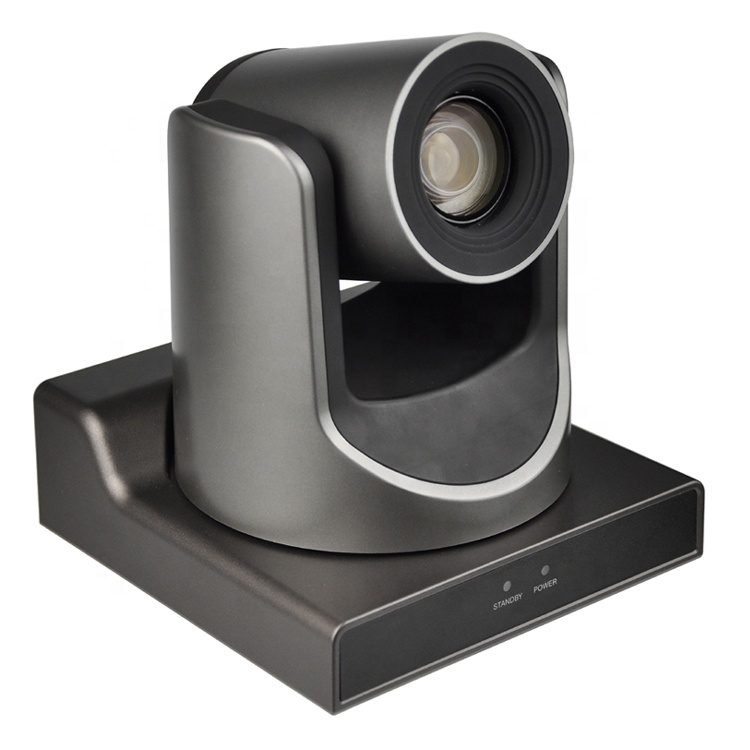

Conference Camera Tezag EX420

Conference Camera Tezag EX420 ZOOM 20X

Download data Download catalogs

Key Features

60.7° Wide-angle Lens + 20x Optical Zoom

60.7° high-quality ultra-wide-angle lens, optical zoom up to 20x, support 16x digital zoom.

1080P Full HD

Using 1/2.8-inch high-quality HD CMOS sensor with effective 2.07 million pixels, it can achieve high-quality images with a maximum resolution of 1920x1080.

New ISP Image Processing Algorithm

The new generation of ISP image processing algorithm provides more complete white balance and automatic exposure functions, which significantly improves the image output performance of the camera, and the imaging effect is also better. Widely used in education recording and broadcasting, distance education, video conferencing, live broadcasting, broadcasting and other industries.

Upgraded AI Technology

Using upgraded AI technology, through face recognition, it can accurately determine the location of people, realize automatic tracking and automatic frame selection.

1080P60 NDI®|HB

It supports 1080P60 NDI®|HB technology, ultra-low latency high-quality audio and video signal transmission, and can achieve unparalleled ultra-high-resolution image quality and lossless effects that are closer to vision.

Leading Auto Focus Technology

Using advanced focusing algorithm, the lens can focus quickly, accurately and stably.

Audio Processing Algorithm

The exclusive audio processing algorithm can eliminate reverberation, effectively reduce environmental noise, and support EQ adjustment to optimize sound effects; the device supports dual mic pickup, and can also be connected to external microphones, wireless bees, etc., to meet the pickup needs of most scenarios.

Multiple Interfaces

Support HDMI and 3G-SDI interface, effective transmission distance of 3G-SDI is up to 150 meters (1080P30). HDMI, 3G-SDI, LAN can output three HD digital signals at the same time.

Remote Control

Through the RS232 and RS485 serial ports, the camera can be controlled remotely.

Detail Information

Camera

Signal System: 1080P60, 1080P59.94, 1080P50, 1080I60, 1080I59.94, 1080I50, 1080P30, 1080P29.97, 1080P25, 720P60, 720P59.94, 720P50

Sensor: 1/2.8 inch, CMOS,

Effective pixels: 2.07M

Scanning Mode: Progressive

Lens: 20x, f = 4.42mm ~ 88.5mm, F1.8 ~ F2.8

Digital Zoom: 16x

Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)

Shutter: 1/30s ~ 1/10000s

White Balance: Auto, VAR, Manual, One Push, Indoor, Outdoor

Backlight Compensation : Support

Digital Noise Reduction: 2D & 3D Digital Noise Reduction

SNR: ≥55dB

Horizontal FOV: 60.7° ~ 3.36°

Vertical FOV: 34.1° ~ 1.89°

Pan Angle: ±170°

Tilt Angle: -30° ~ +90°

Pan Speed: 1.7° ~ 100°/s

Tilt Speed: 1.7° ~ 69.9°/s

Image Flip: Support

Image Freeze: Support

Preset Position: 255

Preset Accuracy: 0.1°

Audio Features

Microphone Array: Built-in dual microphones, 100Hz to 16KHz frequency response

Audio Input: Support LINE IN audio input

Audio Output: Support LINE OUT, HDMI, USB and other audio output

USB Features

Operate System: Windows 7/8/10, Mac OS X, Linux, Android

Color System / Compression: YUY2/MJPEG/H.264

USB Audio: Support

USB Video

Protocol UVC 1.1/UVC 1.5

UVC PTZ Control: Support

Network Features

Video Compression: H.264/H.265

Video Stream: First Stream, Second Stream

First Stream Resolution: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360

Second Stream Resolution: 1280x720, 1024x576, 720x480, 640x360, 480x272, 320x240, 320x180

Video Bit Rate: 32Kbps ~ 20480Kbps

Bit Rate Control : CBR, VBR

Frame Rate: 1fps ~ 60fps

Audio Compression: AAC

Audio Bit Rate: 96Kbps, 128Kbps, 256Kbps

Protocols: NDI, TCP/IP, HTTP, RTSP, RTMP/RTMPS, ONVIF, DHCP, SRT, Multicast

Interfaces

LINE IN Interface: 1 x LINE IN: 3.5mm Audio Interface

LINE OUT Interface: 1 x LINE OUT: 3.5mm Audio Interface

Communication Interface: 1 x RS485: 2pin phoenix port,

Max Distance: 1200m,

Protocol: VISCA/Pelco-D/Pelco-P

1 x RS232 IN: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P

1 x RS232 OUT: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only

Network Interface: 1 x LAN: 10M/100M Adaptive Ethernet Port

HDMI Interface 1 x HDMI: Version 1.3

3G-SDI Interface: 1 x 3G-SDI: BNC type, 800mVp-p, 75Ω. Along to SMPTE 424M standard

USB Interface: 1 x USB 3.0: Type A

Power Jack: JEITA type (DC IN 12V)

General Specifications

Input Voltage: DC 12V

Input Current: Max. 1.2A

Operating Temperature: 0°C ~ 40°C

Storage Temperature: -40°C ~ 60°C

Power Consumption: Max. 15W

Dimension: 146mm x 169mm x 168mm

Net Weight: About 1.5Kg
